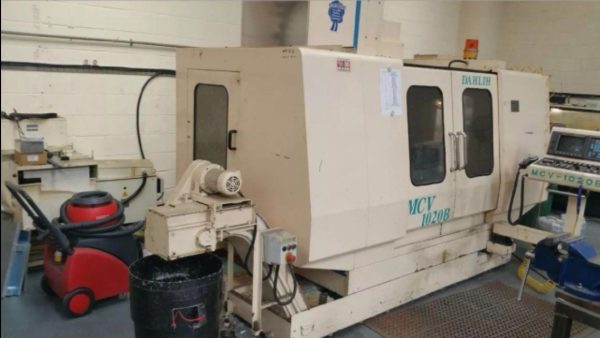

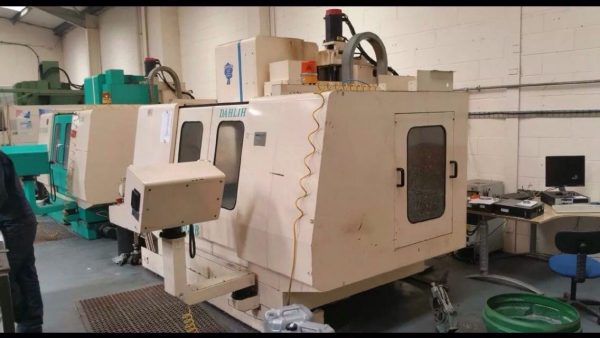

DAH LIH MCV 1020B Vertical Machining Centre

Vertical machining center with Fanuc O-M control, 24-tool changer, and 1000kg table load for heavy-duty applications.

Upgrade your machining capabilities with the DAH LIH MCV 1020B Vertical Machining Centre, designed for high-performance and precision. Here’s why this machine is an excellent choice:

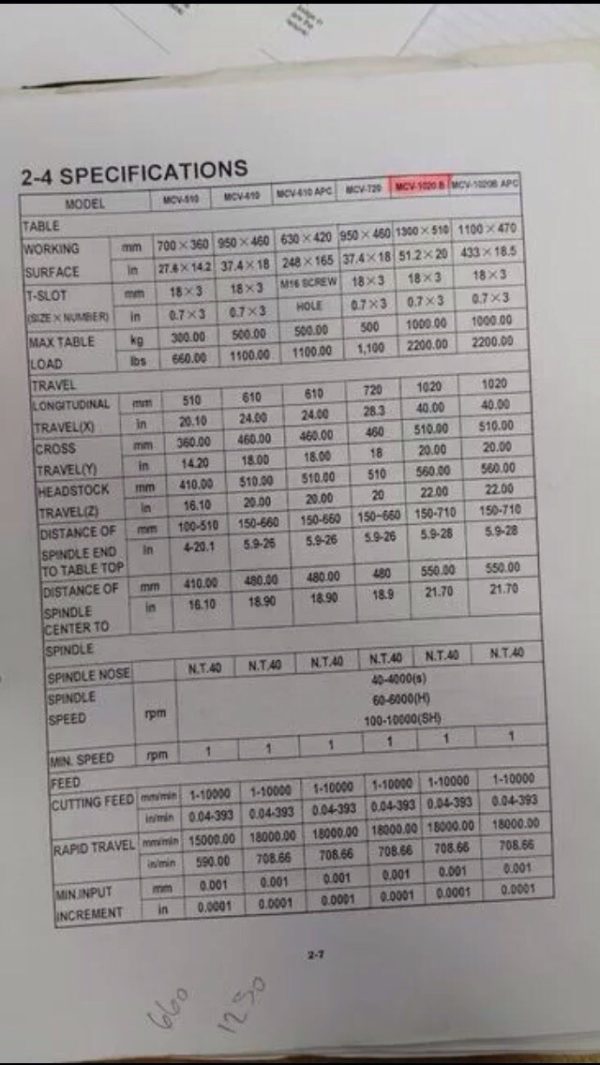

Specification	Details

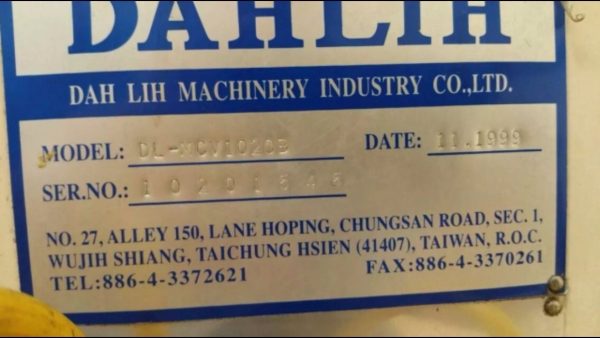

Model	DAH LIH MCV 1020B

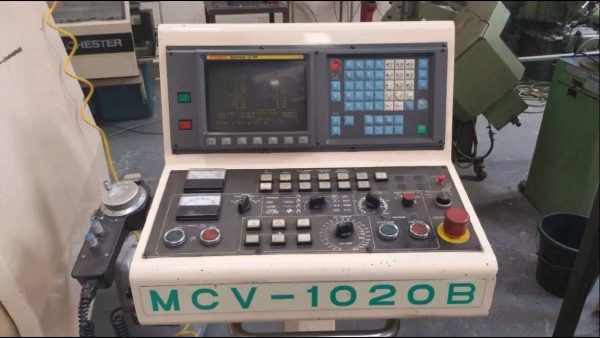

Control System	Fanuc Series O-M CNC Control, offering accurate and reliable machining.

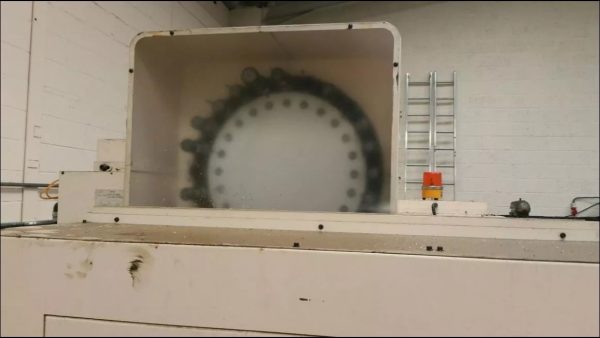

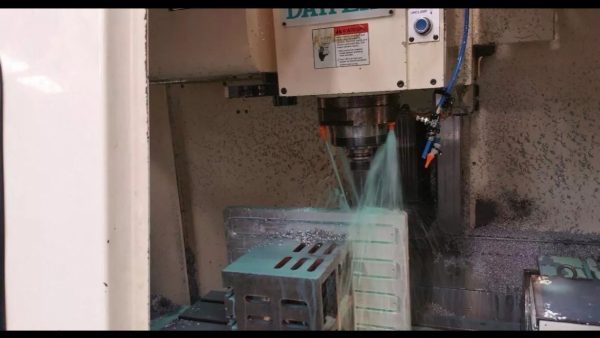

Key Specifications	Table Size: 1250mm x 660mm, providing a spacious area for larger workpieces. X Travel: 1020mm, ideal for accommodating extensive workpiece sizes. Y Travel: 510mm, suitable for detailed and precise operations. Z Travel: 560mm, offering depth for complex machining tasks. Max Table Load: 1000kg, capable of handling heavy materials. 24-Position Auto Tool Changer: Enhances efficiency and reduces downtime with quick tool changes. NT-40 Spindle: Provides versatility for various cutting applications. Spindle Speeds: 80 to 8,000 rpm, allowing for flexible machining operations. 10 Hp Main Motor: Delivers powerful performance for demanding tasks. Through Spindle Coolant: Ensures effective cooling during operation. Refrigerated Spindle Jacket: Maintains optimal spindle temperature for consistent performance.

As one of the largest importers in the industry, we are dedicated to delivering top-quality machines and exceptional value to customers worldwide.

DAH LIH MCV 1020B Vertical Machining Centre

DAH LIH MCV 1020B Vertical Machining Centre
